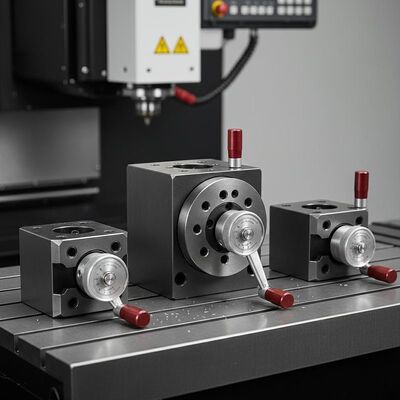

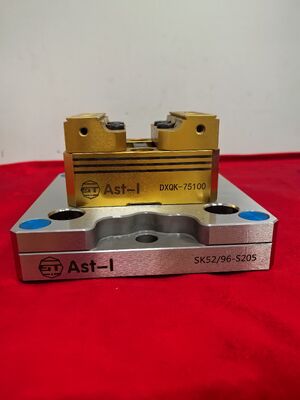

Hardened Steel Axis Fixtures with 0.005mm Repeat Accuracy and Manual Locking for 3/4/5 Axis CNC Working

Hardened Steel Axis Fixtures with 0.005mm Repeat Accuracy and Manual Locking for 3/4/5 Axis CNC Working
Hardened Steel Axis Fixtures with 0.005mm Repeat Accuracy and Manual Locking for 3/4/5 Axis CNC Working

Large Image :  Hardened Steel Axis Fixtures with 0.005mm Repeat Accuracy and Manual Locking for 3/4/5 Axis CNC Working

Product Details:
Place of Origin: China
Brand Name: AST
Contact Now

Hardened Steel Axis Fixtures with 0.005mm Repeat Accuracy and Manual Locking for 3/4/5 Axis CNC Working

Description
Material: Harded Steel CNC Axis Fixture: 3 / 4 / 5
Application: 3/4/5 Axis Cnc Working Color: White
Warranty: 1 Years Features 1: Double Fixtures
Features 2: Manual Locking Repeat Accuracy: 0.005mm
Highlight:

5 axis CNC light fixtures

,

high precision axis fixtures

,

automated production lighting fixtures

Precision Axis Light Fixtures for CNC Applications
The AST Axis Light Fixtures represent the pinnacle of engineering excellence in industrial lighting solutions. Designed specifically for demanding CNC machining environments, these fixtures deliver exceptional precision with 0.005mm repeat accuracy across 3, 4, and 5-axis CNC operations. Built from hardened steel for maximum durability, they provide reliable performance in automated production settings.
Key Features
  • Manual locking mechanism for secure operation
  • 18KN locking force for maximum stability
  • 0.005mm repeat accuracy for precision applications
  • Hardened steel construction for long-term durability
  • Compatible with 3, 4, and 5-axis CNC machines
  • 1-5 year operational lifespan
  • Sleek white finish for versatile integration
  • 1-year manufacturer warranty
Technical Specifications
Locking Mechanism Manual Locking
Locking Force 18KN
Repeat Accuracy 0.005mm
CNC Compatibility 3 / 4 / 5 Axis
Weight 11.5kg
Dimensions 208 × 106 × 25mm
Color White
Lifespan 1-5 years
Warranty 1 Year
Industrial Applications
These precision fixtures are engineered for demanding industrial environments including aerospace, automotive, electronics, and medical device manufacturing. Their exceptional accuracy and stability make them ideal for prototype development, small batch production, and high-volume manufacturing where precise workpiece positioning is critical.
Customization Options
AST offers customized Axis Luminaire Fixtures tailored to your specific manufacturing requirements. Our engineering team works closely with clients to develop solutions that integrate seamlessly with existing production lines and meet unique application needs.
Technical Support & Services
Comprehensive technical support includes installation guidance, configuration assistance, maintenance protocols, and troubleshooting. We provide detailed documentation, regular software updates, warranty support, and professional training resources to ensure optimal fixture performance throughout their operational life.
Packaging & Shipping
Each fixture is securely packaged in custom-designed boxes with protective padding to prevent transit damage. We utilize eco-friendly packaging materials and partner with reliable carriers offering tracking and insurance options for both domestic and international shipments.

Tag:

Axis Fixtures,

Cnc Turning Fixtures,

Cnc Axis Fixtures
