Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning
Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

Large Image :  Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

Product Details:
Place of Origin: China
Brand Name: AST
Model Number: SK96-190
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 200*210*60mm
Delivery Time: 5-8 working days
Payment Terms: T/T
Contact Now

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning

Description
Name: Magnetic Workholding Fixtures Material: Steel
Size: 150x150x30mm Repeatability: Within 0.005mm
Features: Flexible Exchange Quickly OEM: Support
High Light:

Steel CNC Workholding Fixture

,

CNC Workholding Fixture 4 Axis

,

Magnetic Workholding Fixtures

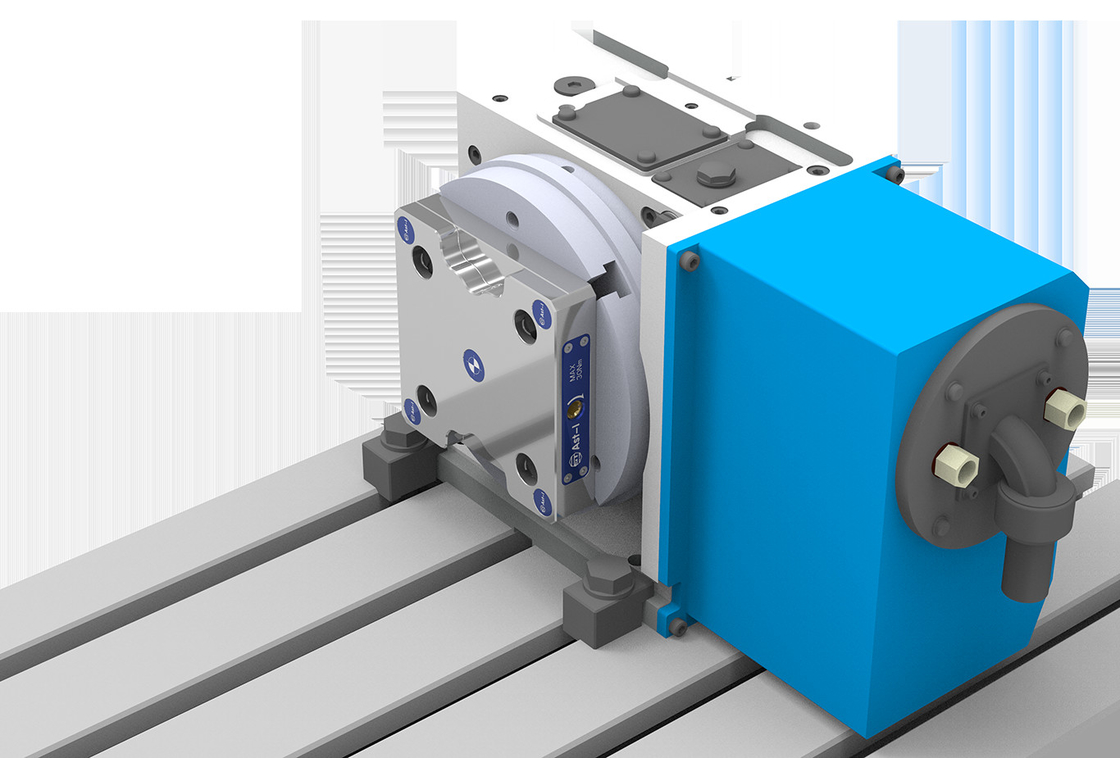

Manual Zero Point Positioning Quick-Change Single Plates System For 4 Axis Cnc SK96-S190



The clamping edge of this zero-point plate allows it to be mounted on essentially all machine tables if clamps are used for this purpose.

The Quick•Point 96 variant is also popular as an interface on pallet automations or on your own customized clamping fixture.

Its mounting holes are also suitable for the Quick•Point riser made of aluminium, which can be used to improve accessibility for 5-sided machining.


No need to disassemble and  calibrate time.



Maximize changeout efficiency with zero point quick exchange system



Size:150x150x30mm
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: steel
Weight:4.0Kg



Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 0Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 1

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 2

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 3

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 4Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 5

Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 6Steel Magnetic CNC Workholding Fixture 4 Axis Manual Zero Point Positioning 7

Tag:

CNC Workholding Fixture,

CNC Mill Workholding,

Zero Point Workholding
