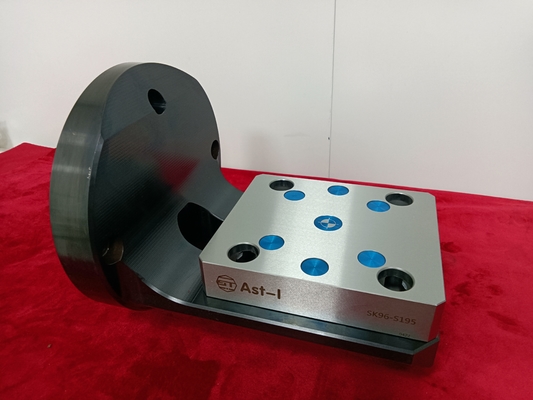

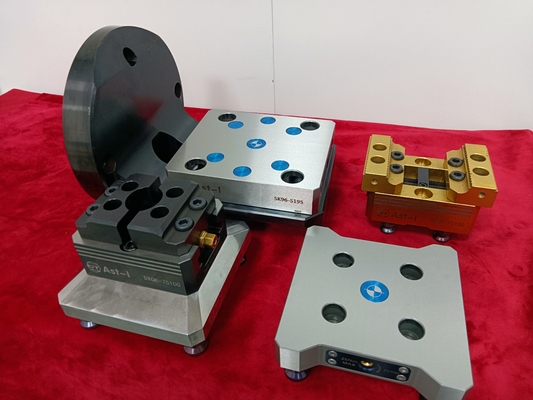

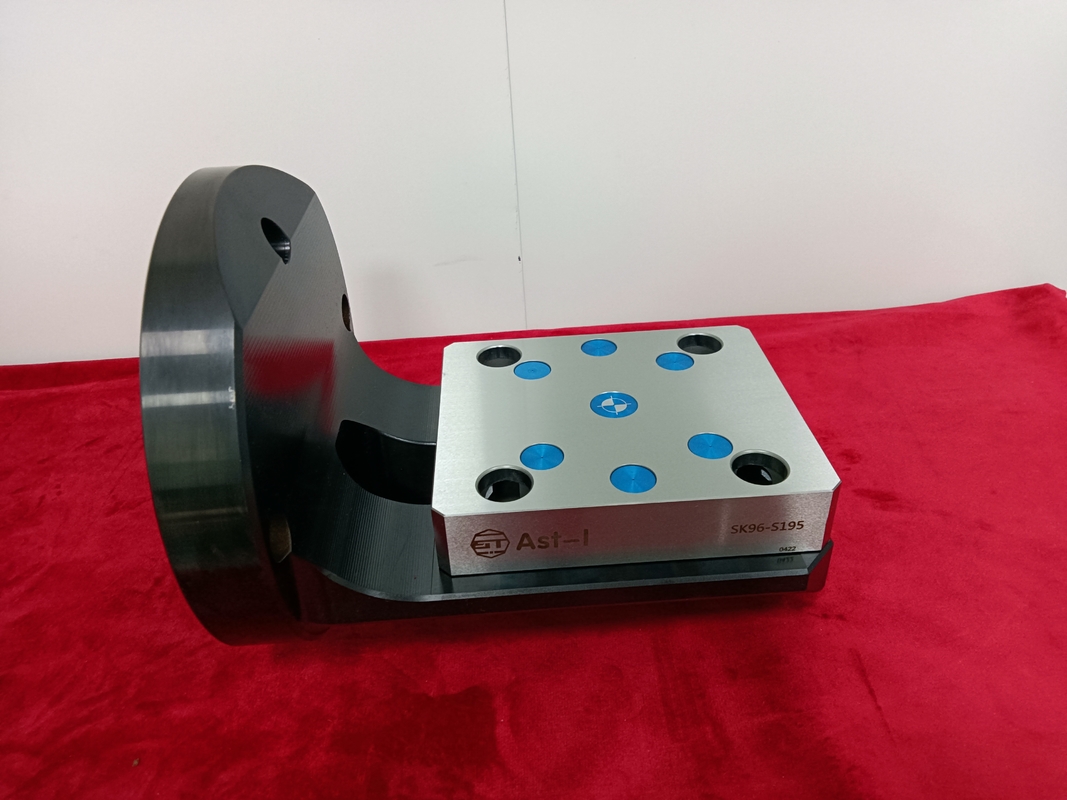

Manual Zero Point Clamping Quick-Change Pallet System For 4 Axis Cnc SK96-S195

FEATURES:

• Quick-Change Base Plate is suitable for 4 and 5 Axis usage, either in horizontal or vertical machining.

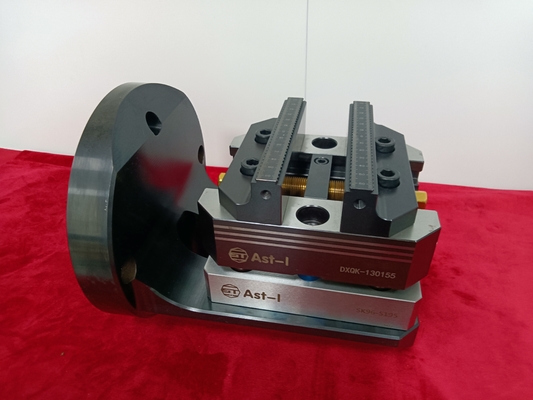

• Suitable for 1301551/130250/150250 series Self Centring Vise.

• Repeatability: within 0.005mm •

Material: Alloy Steel

• Standard Accessory: 4 Pull Studs.

No need to disassemble and  calibrate time.

Size:150x128x30mm

Repeat Position:0.005mm

Locking force:22KN (4pcs pull stud)

Material: steel

Weight:3.6Kg
