Product Details:
|
| Name: | CNC Milling Clamps | Material: | Steel |
|---|---|---|---|
| Features: | Maximize Changeout Efficiency | Repeatability: | Within 0.005mm |
| Suitable For: | Heavy Cutting | Standard Accessory: | 4 Pull Studs. |
| High Light: | Manual CNC Milling Clamps,CNC Milling Clamps,0.005mm Quick Change Pallet System |
||

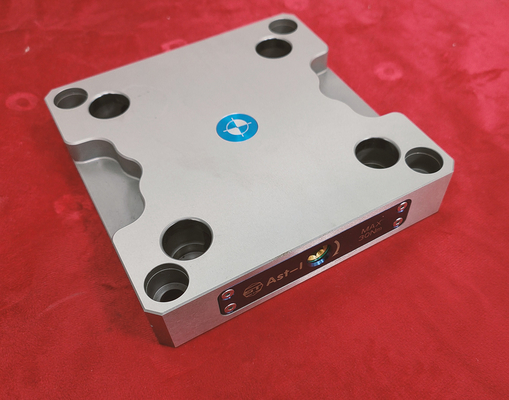

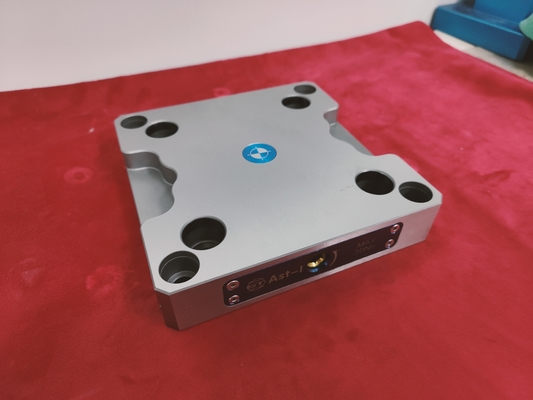

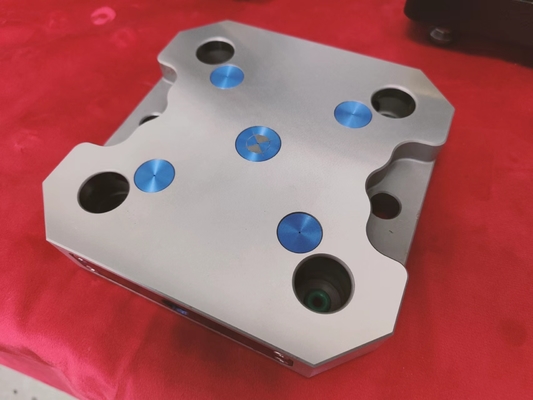

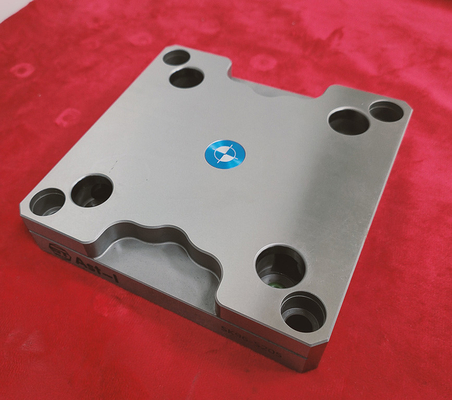

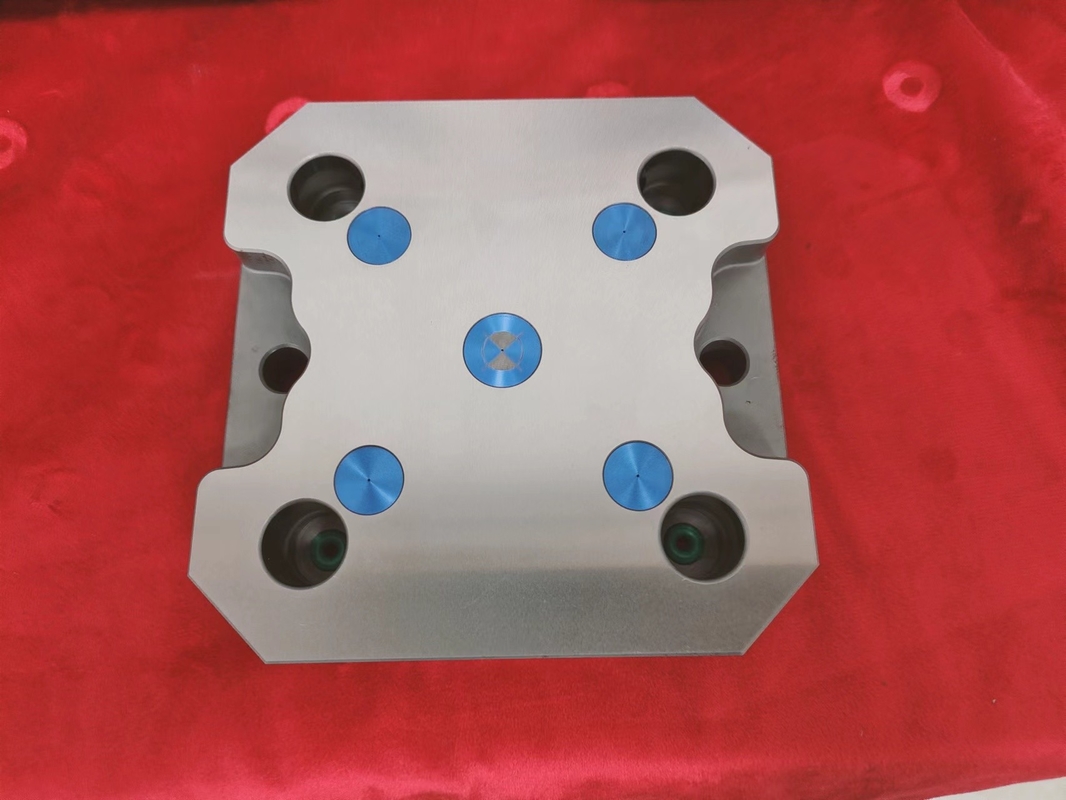

The four-hole zero-point locator is a positioning tool that can quickly exchange fixtures and fixed
fixtures, The standard installation method enables tools such as vices, pallets, chucks, etc, to be
quickly and repeatedly changed between various cnc machine tools.
No need to disassemble and calibrate time.
Size:150x150x30mm
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: steel
Weight:4.0Kg
