Product Details:
|
| Size: | 150*130*80mm | Material: | Steel |
|---|---|---|---|
| Acc: | 96 Pull Stud | Application: | 5 Axis Working Hold |
| Weight: | 6kg | Features: | Maximize Changeout Efficiency |
| High Light: | 6kg Zero Point Clamping,Zero Point Clamping 0.005mm,22KN Quick Change Pallet System |
||

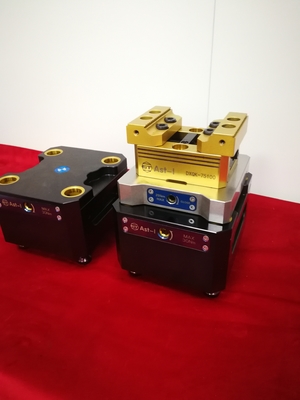

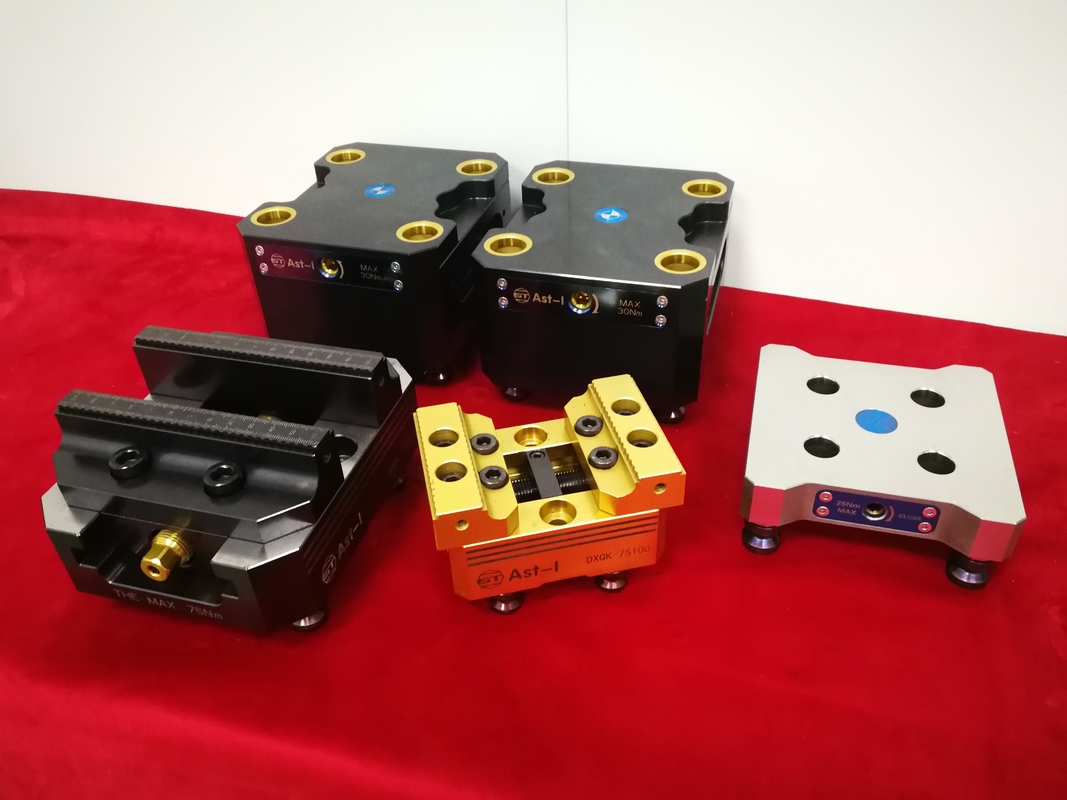

A riser improves accessibility in 5-sided machining and can either be mounted directly and firmly on the machine table or set up and removed on a zero-point plate. It is available in round and rectangular versions in heights of 80 and 100 mm. The zero-point plates are pinned, aligned and mounted to the riser via bushings.
No need to disassemble and calibrate time.
Details: 96 style uprise vise
Size:150mmx135mmx80
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: hard steel
Weight:6.0Kg
