3 Axis CNC Workholding Fixture Clamps Quick Change Pallet System

Large Image : 3 Axis CNC Workholding Fixture Clamps Quick Change Pallet System

Product Details:

Place of Origin:	China
Brand Name:	AST
Model Number:	SK96-A90

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	20021060mm
Delivery Time:	5-8 working days
Payment Terms:	T/T

Contact Now

3 Axis CNC Workholding Fixture Clamps Quick Change Pallet System

Description

Material:	Steel	Suitable:	3/4 Axis Workingshop
Repeat Accuracy:	Within 0.005mm	Size:	150x149x199mm
Warranty:	1 Year	Locking Force:	22kn
Highlight:	3 Axis CNC Workholding Fixture , CNC Workholding Fixture Clamps , CNC Workholding Clamps

zero point clamping quick-change pallet system SK96-A90

The four-hole zero-point locator is a positioning tool that can quickly exchange fixtures and fixed
fixtures, The standard installation method enables tools such as vices, pallets, chucks, etc, to be
quickly and repeatedly changed between various cnc machine tools.

No need to disassemble and calibrate time.

Size:150x149x199mm
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: alloy steel
Weight: 5.0Kg

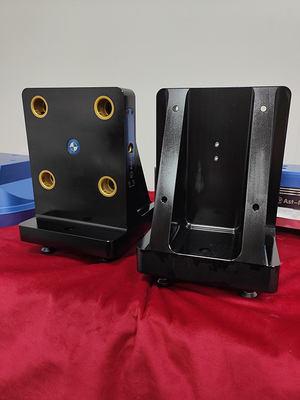

3 Axis CNC Workholding Fixture Clamps Quick Change Pallet System 0

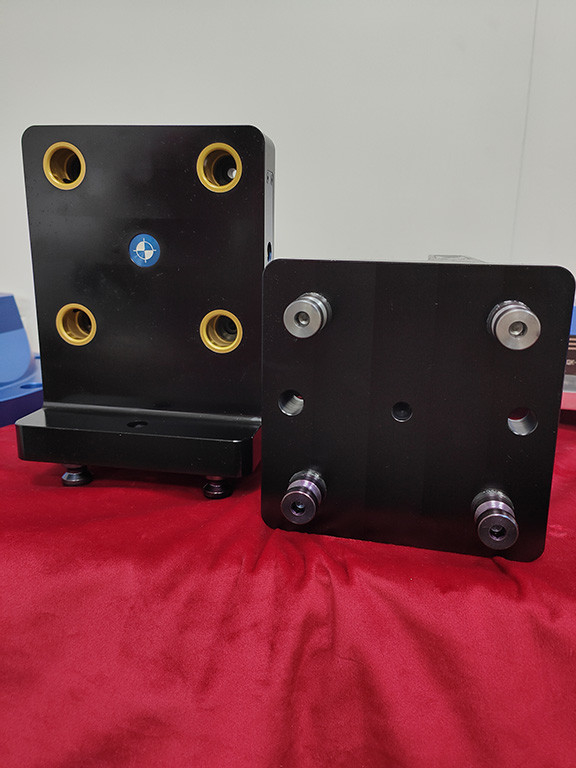

3 Axis CNC Workholding Fixture Clamps Quick Change Pallet System 1

3 Axis CNC Workholding Fixture Clamps Quick Change Pallet System 2

3 Axis CNC Workholding Fixture Clamps Quick Change Pallet System 3
