Precise Self Centering Vise CNC Working For 3 axis 4axis 5axis Vise 5 Axis 77130

Precise Self Centering Vise CNC Working For 3 axis 4axis 5axis Vise 5 Axis 77130
Precise Self Centering Vise CNC Working For 3 axis 4axis 5axis Vise 5 Axis 77130
Precise Self Centering Vise CNC Working For 3 axis 4axis 5axis Vise 5 Axis 77130 Precise Self Centering Vise CNC Working For 3 axis 4axis 5axis Vise 5 Axis 77130 Precise Self Centering Vise CNC Working For 3 axis 4axis 5axis Vise 5 Axis 77130

Large Image :  Precise Self Centering Vise CNC Working For 3 axis 4axis 5axis Vise 5 Axis 77130

Product Details:
Place of Origin: China
Brand Name: AST
Model Number: DXQ77130
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: estimate carton packing size 90*180*60mm
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 5-7Working days after confirm order
Contact Now

Precise Self Centering Vise CNC Working For 3 axis 4axis 5axis Vise 5 Axis 77130

Description
Cnc: 5axis Vise Suitable For Milling: Heavy Cutting
FEATURES: Quick-Change Material: Alloy Steel
How To Use: Manual Maximum Allowed Torqueal: 77Nm

Precision machining fixture 5-axis self centering vise for cnc milling machine 77130

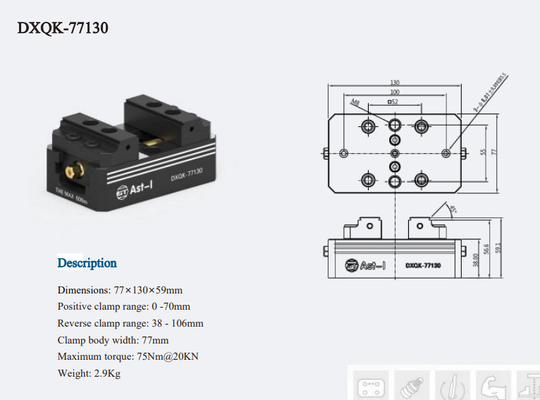

Product Description:



Dimensions:77x130x59mm

Positive clamp range: 0 -70mm

Reverse clamp range:38-106mm

Clamp body width:77mm

Maximum torque:75Nm@20KN

Weight: 2.9kg

Precise Self Centering Vise CNC Working For 3 axis 4axis 5axis Vise 5 Axis 77130 0



Max opening 77mm self centering 5 axis vise

1. Material: steel.

2. Warranty:1 years

5.max clamping range:0-70mm

Product Name
self centering vise DXQ77130
Material
stainless steel
Used
Four-axis, five-axis, CNC indexing plate, precision machining of vertical horizontal CNC milling machine.
Advantage
Easy to use,precise clamping.

Precise Self Centering Vise CNC Working For 3 axis 4axis 5axis Vise 5 Axis 77130 1
Precise Self Centering Vise CNC Working For 3 axis 4axis 5axis Vise 5 Axis 77130 2
Precise Self Centering Vise CNC Working For 3 axis 4axis 5axis Vise 5 Axis 77130 3
