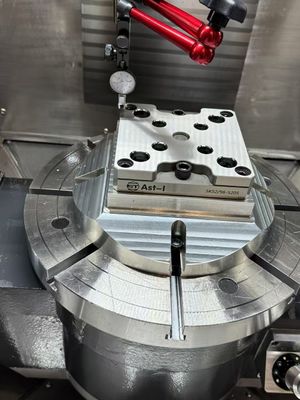

High Precision Zero Point Fixture Repeatability Within 0.005mm 0.01mm Accuracy 1 X Package Contents
Product Description
The Zero Point Fixture is a precision tool designed to enhance the efficiency and accuracy of CNC machining operations. This innovative fixture provides exceptional repeatability, with a precision of 0.005mm, ensuring consistent and reliable results with each use. The fixture's repeat accuracy is within 0.005mm, making it an ideal choice for applications that demand high precision.
Featuring a robust construction and advanced engineering, the Zero Point Fixture delivers superior accuracy, with a tolerance of 0.01mm. This level of precision enables machinists to achieve tight tolerances and high-quality finishes on their workpieces.
Equipped with 4 pull studs as a standard accessory, the Zero Point Fixture offers convenience and versatility in setup and operation. The pull studs provide secure and reliable clamping of workpieces, ensuring stability during machining processes.
Designed for compatibility with a 3-axis vise, the Zero Point Fixture seamlessly integrates into machining setups, allowing for quick and easy installation and alignment. Its user-friendly design simplifies workflow and enhances productivity in CNC machining operations.
Utilizing a dovetail fixture CNC design, the Zero Point Fixture offers exceptional stability and precision during machining operations. The dovetail construction ensures secure clamping of workpieces, minimizing vibrations and enhancing cutting accuracy.
Applications
The Zero Point Fixture by AST (Model: SK96-205) is a versatile clamping fixture designed for a wide range of machining applications. Made in China, this fixture comes equipped with 96 pull studs for secure and stable clamping.
With an impressive accuracy of 0.01mm and repeatability of 0.005mm, the Zero Point Fixture ensures precise and consistent results with every use. The size of the fixture is 200mm X 200mm, providing ample space for a variety of workpieces.
One of the standout features of this fixture is its aluminum vise jaws, which offer a strong and reliable grip on the workpiece. This ensures that the workpiece remains securely in place during machining, reducing the risk of errors or accidents.
The Zero Point Fixture is ideal for a wide range of machining tasks, including milling, drilling, and grinding. Its repeat accuracy of within 0.005mm makes it suitable for high-precision applications where consistency is key.
Whether you are working on small, intricate parts or larger components, the Zero Point Fixture provides the stability and precision you need to achieve excellent results. Its durable construction and reliable performance make it a valuable tool in any workshop or manufacturing environment.
Overall, the Zero Point Fixture from AST is a top-quality clamping fixture that delivers exceptional performance and reliability. Its innovative design, precise accuracy, and versatile capabilities make it a must-have tool for any machinist or manufacturer.
Customization
Customize your Zero Point Fixture from AST with our Product Customization Services:
- Brand Name: AST
- Model Number: SK96-205
- Place of Origin: China
- Compatibility: CNC Machine
- Standard Accessory: 4 Pull Studs
- Size: 200mm X 200mm
- Feature: Flexible Exchange
- Acc: 96 Pull Stud
Enhance your 5 axis clamping system with our adjustable milling vise for the ultimate precision in your machining operations.
FAQ
Q: What is the brand name of this fixture?
A: The brand name is AST.
Q: What is the model number of this fixture?
A: The model number is SK96-205.
Q: Where is this fixture manufactured?
A: This fixture is manufactured in China.
Q: Is this fixture suitable for heavy-duty industrial use?
A: Yes, this fixture is designed for heavy-duty industrial applications.
Q: Can this fixture be used for precision machining processes?
A: Yes, this fixture is ideal for precision machining processes.
