Product Overview

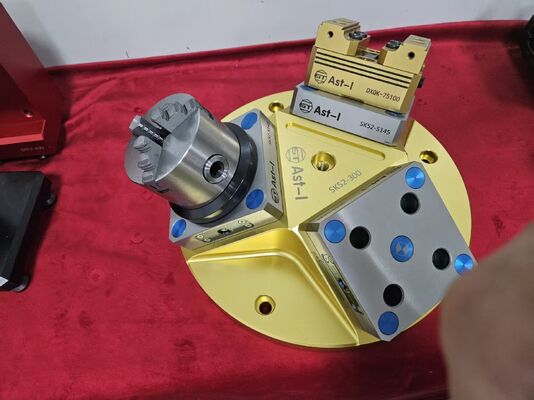

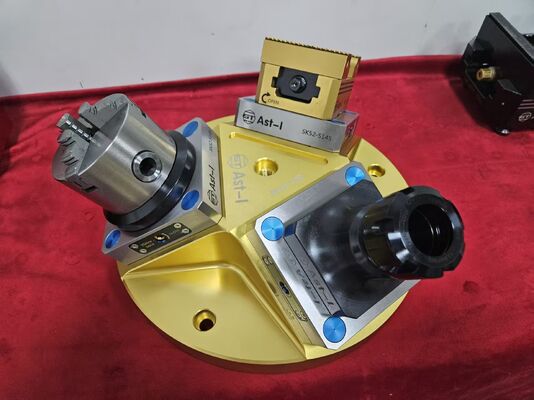

The AST SK96-205 Zero Point Fixture is a revolutionary quick-change workholding system engineered to enhance efficiency and precision in machining processes. Designed for modern manufacturing environments demanding rapid changeovers and consistent performance, this fixture delivers exceptional repeatability within 0.005mm.
Key Features & Benefits
- Rapid Changeover: Flexible exchange capability allows quick swapping of workpieces and fixtures
- Cycle Time Reduction: Reduces setup and cycle times by up to 80%
- Exceptional Precision: Repeatability within 0.005mm for tight tolerance applications
- Multi-Axis Compatibility: Supports 3, 4, and 5-axis clamping systems
- Quick Installation: Setup in less than 5 minutes
- Robust Construction: Models available from 5-20kg for various load requirements
- Complete Package: Includes four high-quality pull studs for secure mounting
Technical Specifications
| Model Number |
SK96-205 |
| Dimensions |
208 × 106 × 25mm |
| Weight Range |
5-20kg (depending on model) |
| Repeatability |
Within 0.005mm |
| Installation Time |
< 5 minutes |
| Lifespan |
1-5 years (under normal operating conditions) |
Industrial Applications
The AST SK96-205 Zero Point Fixture is ideal for precision machining environments utilizing 3, 4, or 5-axis CNC machinery. Its exceptional stability and repeatability make it essential for industries requiring high accuracy and efficiency.
- Aerospace component manufacturing
- Automotive parts production
- Mold making and tooling
- Precision engineering sectors
- Batch production operations
- Complex multi-axis machining
Customization Services
AST offers comprehensive product customization services for the SK96-205 Zero Point Fixture, tailored to your specific manufacturing requirements. Our customization focuses on enhancing efficiency while maintaining the fixture's core precision and quick-change capabilities.
Support & Services
We provide comprehensive technical support including installation guidance, troubleshooting, maintenance tips, and replacement parts information. Our services include on-site installation, calibration, training, and regular maintenance to ensure optimal performance and longevity.
Packaging & Shipping
Each Zero Point Fixture is securely packaged in custom-designed foam inserts within double-walled corrugated cardboard boxes. Moisture-resistant wrapping protects against environmental factors. Shipping includes tracking and insurance, with international packaging compliant with export regulations.
Frequently Asked Questions
What is the Zero Point Fixture model SK96-205 used for?
The AST Zero Point Fixture SK96-205 provides quick and precise workpiece positioning and clamping in machining processes, improving efficiency and accuracy.
What are the key features of the AST Zero Point Fixture SK96-205?
Key features include fast clamping and releasing, high repeatability, compatibility with various machine tools, and robust design for reliable industrial performance.
Is the SK96-205 compatible with all CNC machines?
The SK96-205 is compatible with most CNC machines supporting zero point clamping systems. Check your machine specifications or consult AST for compatibility details.
How does the Zero Point Fixture improve machining productivity?
By enabling quick workpiece changes without realignment, the SK96-205 significantly reduces setup time, allowing faster production cycles and increased machine uptime.
What maintenance is required for the AST Zero Point Fixture?
Regular cleaning to remove debris and periodic lubrication of moving parts are recommended. Detailed maintenance instructions are provided in the product manual.
