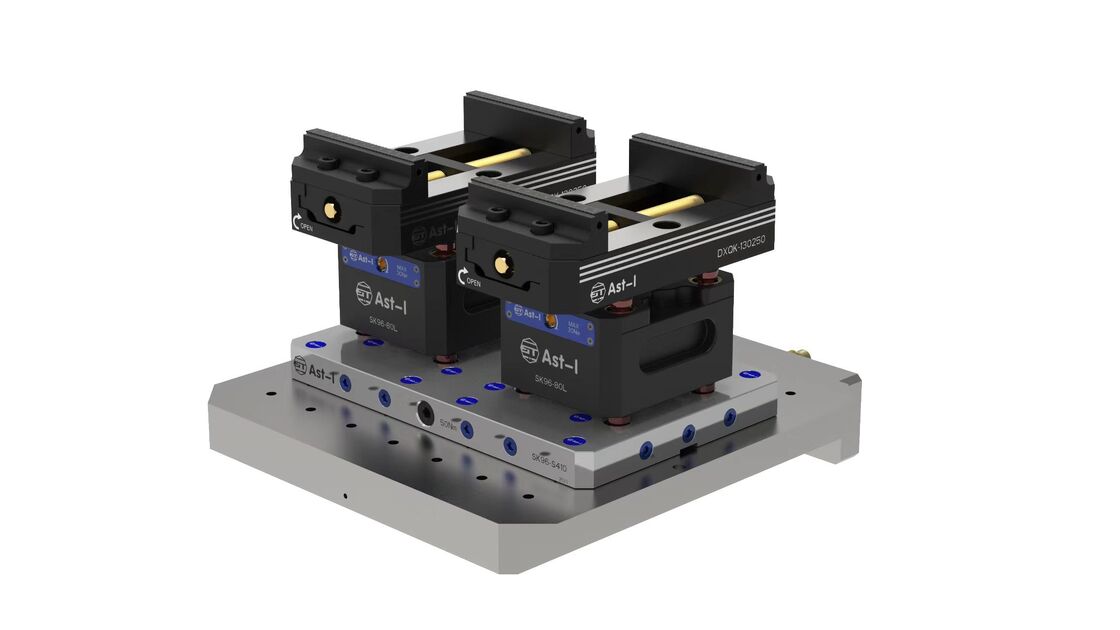

Robust Construction CNC Workholding Fixture Coated Anti Rust Treatment Reliable Performance

Product Description:

The CNC Workholding Fixture is an advanced solution designed to enhance precision and efficiency in machining operations. Crafted from hardened steel, this fixture offers exceptional durability and long-lasting performance, making it an ideal choice for demanding CNC machining environments. Its robust construction ensures stability and reliability, while the ground and polished surface finish provides a smooth, high-quality interface that minimizes wear and tear during repeated use.

One of the standout features of this CNC clamping fixture is its flexible exchange capability. Operators can quickly and easily switch between different workpieces or configurations without compromising setup time. This flexibility significantly reduces downtime, boosting overall productivity and allowing for faster turnaround on jobs. The fixture’s design supports a multi-position base, enabling multiple components to be clamped and machined in a single setup. This feature not only increases throughput but also ensures consistent positioning and alignment across various operations.

Precision is paramount in CNC machining, and this workholding fixture excels in repeat accuracy. With an impressive tolerance of within 0.005mm, it guarantees that each workpiece is held securely and consistently, enabling highly accurate machining results every time. This level of repeatability is crucial for applications requiring tight tolerances and meticulous detail, making the fixture suitable for industries such as aerospace, automotive, medical devices, and precision engineering.

The fixture is designed to accommodate workpieces up to a maximum size of 300mm x 200mm x 150mm, providing versatility for a wide range of projects. Whether you are machining small, intricate parts or medium-sized components, this fixture can securely hold your workpieces in place to ensure optimal machining conditions. Its zero point fixture capability further enhances setup efficiency by allowing for quick and precise location referencing, reducing the need for manual measurements and adjustments during each changeover.

In addition to functional advantages, the fixture’s hardened steel construction ensures resistance to deformation and wear, maintaining its integrity even under heavy loads and repeated clamping cycles. The ground and polished surface finish not only contributes to the fixture’s aesthetic appeal but also plays a critical role in maintaining smooth operation and preventing damage to delicate workpieces. This combination of durability and precision surface treatment results in a fixture that delivers reliable, consistent performance over time.

Overall, the CNC Workholding Fixture is a vital tool for any CNC machining setup that demands high precision, rapid changeover, and robust clamping capabilities. Its flexible exchange design, multi-position base, and zero point fixture features collectively provide a streamlined workflow that maximizes productivity while maintaining exceptional accuracy. Whether you are working with complex geometries or require quick switching between different parts, this fixture offers the versatility and reliability needed to meet the most stringent manufacturing requirements.

Investing in this CNC clamping fixture means enhancing your machining capabilities with a product engineered for accuracy, durability, and efficiency. Its ability to maintain repeat accuracy within 0.005mm ensures your parts meet exact specifications, while the hardened steel material and superior surface finish guarantee longevity and consistent performance. Suitable for a wide range of applications, this fixture is an indispensable component for modern CNC machining operations seeking to improve setup times, reduce errors, and achieve superior quality results.

Applications:

The AST 96 Series CNC Workholding Fixture is a highly versatile and reliable solution designed for various machining applications. Manufactured in China, this fixture is crafted from hardened steel with a hardness rating of HRC57°, ensuring exceptional durability and resistance to wear. Its surface finish is ground and polished, providing a smooth and precise interface that enhances the accuracy and quality of your machining operations.

This 4-axis clamping fixture is engineered to offer multi-axis adjustability, allowing operators to securely hold complex workpieces from multiple angles. This adjustability feature makes the AST 96 Series ideal for intricate machining tasks that require precise positioning and stable clamping. With a torque capacity of 18 KN, it provides strong and consistent clamping force, minimizing workpiece movement and vibration during CNC milling, drilling, and grinding processes.

The CNC clamping fixture is especially suited for industries that demand high precision and reliability, such as aerospace, automotive, electronics, and mold making. It can be employed in various machining centers and CNC machines where flexibility and quick setup are crucial for improving productivity. The fixture’s robust construction and meticulous surface finish contribute to extended service life, reducing downtime and maintenance costs.

In addition to its industrial applications, the AST 96 Series fixture is excellent for prototype development and small batch production runs, where adaptability and quick changeover between different workpieces are essential. It supports efficient workflow by enabling rapid adjustments and secure holding without compromising on precision or repeatability.

Overall, the AST 96 Series CNC Workholding Fixture is a premium choice for professionals seeking a reliable, multi-axis adjustable fixture with superior material quality and clamping performance. Whether used as a standard fixture or a specialized 4-axis clamping fixture, it enhances machining accuracy, stability, and operational efficiency in a wide range of CNC machining scenarios.

Customization:

Introducing the AST 96 Series CNC Workholding Fixture, expertly crafted in China with a robust HRC57° hardness rating to ensure long-lasting durability and precision. This fixture supports OEM customization, allowing you to tailor the product to your specific machining needs. Featuring multi-axis adjustability, it offers unparalleled flexibility and precision positioning for complex workpieces.

The 350x350x30mm size makes it ideal for a variety of applications, providing a stable and reliable platform. Its flexible exchange quickly feature enables seamless integration with your fast exchange tool systems, significantly reducing setup times and increasing productivity. Designed to accommodate 5axis clamping tool operations, this fixture enhances machining efficiency and accuracy on multi-axis CNC machines.

With the AST 96 Series, experience the perfect combination of strength, adaptability, and speed, making it the ideal choice for advanced CNC machining projects requiring fast exchange tool compatibility and superior clamping performance.

Support and Services:

Our CNC Workholding Fixtures are designed to provide precision and stability for your machining operations. To ensure optimal performance and longevity of your fixture, we offer comprehensive technical support and services.

Technical Support includes assistance with installation, setup, and operation of the workholding fixture. Our experts can guide you through selecting the appropriate fixture for your specific CNC machine and application, ensuring maximum efficiency and accuracy.

We provide detailed user manuals and troubleshooting guides to help you maintain your fixture and resolve common issues quickly. For complex technical challenges, our support team is available to provide remote diagnostics and expert advice.

In addition to technical support, we offer customization services to tailor the workholding fixtures to your unique requirements. Whether you need modifications for special workpieces or integration with automated systems, our engineering team can collaborate with you to develop the ideal solution.

Regular maintenance services are also available to keep your fixtures in peak condition. This includes inspection, cleaning, calibration, and replacement of worn components to prevent downtime and maintain machining precision.

We are committed to providing high-quality support and services to help you maximize the productivity and reliability of your CNC Workholding Fixture.

Packing and Shipping:

Our CNC Workholding Fixture is carefully packaged to ensure maximum protection during transit. Each fixture is securely wrapped with protective materials to prevent any damage or scratches. The product is then placed in a sturdy, custom-designed box that provides excellent cushioning and support.

For shipping, we partner with reliable carriers to guarantee timely and safe delivery. Each package is labeled with clear handling instructions and tracking information, allowing you to monitor your order every step of the way. We also offer various shipping options to meet your specific needs, including expedited and standard delivery.

Upon receiving your CNC Workholding Fixture, please inspect the package for any signs of damage. If you encounter any issues, contact our customer service team immediately for prompt assistance. We are committed to ensuring that your product arrives in perfect condition and meets your expectations.

FAQ:

Q1: What brand manufactures the CNC Workholding Fixture 96 Series?

A1: The CNC Workholding Fixture 96 Series is manufactured by the brand AST.

Q2: Where is the AST 96 Series CNC Workholding Fixture made?

A2: The AST 96 Series CNC Workholding Fixture is made in China.

Q3: What applications is the AST 96 Series CNC Workholding Fixture suitable for?

A3: The AST 96 Series CNC Workholding Fixture is suitable for securely holding workpieces during CNC machining processes, enhancing precision and stability.

Q4: Is the 96 Series compatible with various CNC machines?

A4: Yes, the AST 96 Series CNC Workholding Fixture is designed to be compatible with a wide range of CNC machines.

Q5: What materials can the AST 96 Series CNC Workholding Fixture hold?

A5: The 96 Series is capable of holding various materials including metals, plastics, and composites commonly used in CNC machining.
