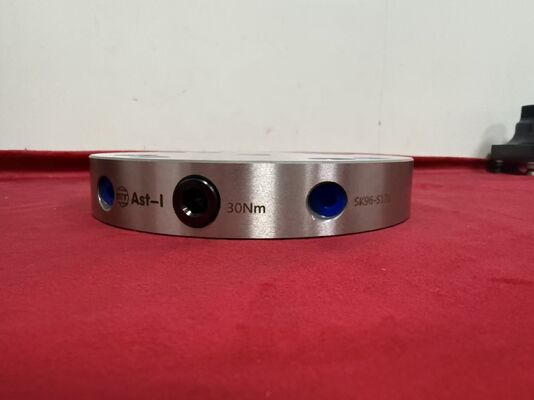

Precision Engineered 4 Axis CNC Workholding Fixture For Precision Manufacturing Workshops

Product Description:

The CNC Workholding Fixture is a precision-engineered solution designed to enhance the efficiency and accuracy of CNC machining processes. Crafted from hardened steel, this fixture offers exceptional durability and strength, ensuring long-lasting performance even under the most demanding industrial conditions. The robust material not only guarantees resistance to wear and deformation but also contributes to maintaining consistent machining precision over extended periods of use.

One of the standout features of this CNC Workholding Fixture is its superior surface finish. The fixture undergoes meticulous grinding and polishing processes, resulting in a smooth, high-quality surface that minimizes friction and wear during operation. This refined surface finish is crucial for maintaining the integrity of the workpiece and ensuring optimal contact between the fixture and the material being machined.

Designed with versatility in mind, this fixture supports OEM customization, allowing it to be tailored to specific requirements and applications. Whether you need a unique configuration or specialized dimensions, the CNC Workholding Fixture can be adapted to meet the precise needs of your manufacturing environment. This OEM support ensures that the fixture integrates seamlessly with your existing CNC systems and workflows.

Accuracy is paramount in CNC machining, and this fixture excels with a repeat accuracy within 0.005mm. Such high precision enables consistent and reliable clamping of workpieces, reducing setup times and minimizing errors during the machining process. The ability to maintain tight tolerances ensures that every part produced meets stringent quality standards, leading to enhanced productivity and reduced waste.

The fixture’s design incorporates key features such as a 4-axis clamping fixture capability, which allows for complex and multi-dimensional workholding. This feature is particularly beneficial for machining operations that require precise positioning and secure clamping across multiple axes, improving overall machining flexibility and efficiency. By accommodating 4-axis clamping, the fixture supports a wider range of machining tasks and enhances the versatility of CNC machines.

Additionally, the CNC Workholding Fixture is equipped with a multi-position base, enabling quick and easy adjustments to accommodate different workpieces and machining setups. This flexibility reduces downtime between production runs and allows operators to switch between tasks with minimal effort. The multi-position base is designed for stability and repeatability, ensuring that workpieces remain securely held in place throughout the machining cycle.

Another significant advantage of this fixture is its zero point fixture capability. This feature facilitates rapid and precise workpiece positioning by providing a fixed reference point, simplifying the setup process and improving overall machining accuracy. Zero point fixtures help streamline production workflows, allowing for faster changeovers and enhanced repeatability, which are essential in high-volume manufacturing environments.

In summary, the CNC Workholding Fixture is a highly reliable and adaptable solution for machining professionals seeking to improve accuracy, efficiency, and flexibility in their CNC operations. With its hardened steel construction, ground and polished surface finish, and OEM customization support, this fixture stands out as a premium choice for demanding industrial applications. The integration of 4-axis clamping, a multi-position base, and zero point fixture functionality further elevates its performance, making it an indispensable tool for precision machining.

Applications:

The AST 96 Series CNC Workholding Fixture, originating from China, is an advanced solution designed to enhance machining precision and efficiency in various industrial applications. With its ground and polished surface finish, this fixture ensures smooth operation and excellent durability. The anti-rust coating provides outstanding corrosion resistance, making it suitable for long-term use in diverse working environments, including humid or chemically aggressive conditions.

One of the key advantages of the AST 96 Series is its flexible exchange capability, allowing for quick and easy tool changes. This fast exchange tool feature significantly reduces downtime during production runs, boosting overall productivity. The fixture supports a multi-position base design, enabling operators to set up multiple components or tools simultaneously. This multi-position base enhances versatility, allowing seamless switching between different machining tasks without the need for extensive recalibration.

The exchange fixture is engineered with exceptional repeat accuracy, maintaining positioning precision within 0.005mm. This high level of repeatability ensures consistent machining quality, which is critical for industries requiring tight tolerances such as aerospace, automotive, and precision engineering. The repeat position accuracy of 0.005mm guarantees that every workpiece is held securely and accurately, minimizing errors and improving overall product quality.

This CNC Workholding Fixture is ideal for a wide range of application occasions and scenarios. It is perfectly suited for batch production environments where quick setup and tool changes are essential to meet tight deadlines. Manufacturers dealing with complex parts benefit from the flexible exchange and multi-position base features, which allow multiple operations to be carried out on a single fixture without compromising precision. Additionally, the corrosion-resistant coating ensures reliable performance in workshops exposed to moisture or cutting fluids.

In summary, the AST 96 Series CNC Workholding Fixture is a robust, precise, and adaptable solution for modern CNC machining needs. Its fast exchange tool capability, multi-position base, and exchange fixture design make it an indispensable component for industries striving for high efficiency and uncompromising accuracy.

Customization:

The AST 96 Series CNC Workholding Fixture is designed to provide exceptional precision and reliability for your machining needs. Originating from China, this clamping fixture ensures repeat accuracy within 0.005mm, making it ideal for high-precision applications. With a maximum workpiece size of 300mm x 200mm x 150mm, it accommodates a wide range of components.

Our product features multi-axis adjustability, allowing for versatile positioning and enhanced flexibility during machining processes. We offer customization services to tailor the 4axis clamping fixture and 5axis clamping tool configurations according to your specific requirements, ensuring optimal performance for your production line.

Weighing 12 Kg, the CNC Workholding Fixture is robust yet manageable, designed for durability and ease of use. Trust AST's expertise to deliver fully customizable clamping fixtures that meet your exact standards and improve your machining efficiency.

Support and Services:

Our CNC Workholding Fixture product is designed to provide precise and reliable clamping solutions for your machining needs. To ensure optimal performance and longevity of your fixture, please follow the recommended installation and maintenance guidelines.

Installation: Carefully mount the fixture onto your CNC machine table, ensuring it is securely fastened and properly aligned. Verify that all moving parts are free of debris and lubricated as specified in the user manual.

Operation: Use the fixture to securely hold workpieces during machining processes. Always check the clamping force and workpiece stability before starting any operation to prevent movement and ensure accuracy.

Maintenance: Regularly inspect the fixture for signs of wear or damage. Clean all surfaces and components after use to remove chips, coolant, and other contaminants. Lubricate moving parts periodically to maintain smooth operation.

Troubleshooting: If you encounter issues such as poor clamping force, misalignment, or unusual noises, consult the troubleshooting section of the manual. Common solutions include re-tightening bolts, realigning the fixture, and replacing worn components.

Our technical support team is dedicated to assisting you with any questions or concerns regarding your CNC Workholding Fixture. For detailed service information, maintenance schedules, and parts replacement, please refer to the product documentation provided with your purchase.

Packing and Shipping:

Our CNC Workholding Fixture is carefully packaged to ensure it arrives in perfect condition. Each fixture is securely wrapped with protective materials and placed in a sturdy, custom-designed box to prevent any damage during transit.

We use high-quality cushioning and padding inside the packaging to safeguard the fixture from shocks and vibrations. Additionally, all packaging materials are environmentally friendly and recyclable.

For shipping, we partner with reliable carriers to offer fast and safe delivery worldwide. Tracking information will be provided once your order has been dispatched, allowing you to monitor the shipment until it reaches your doorstep.

If you have any special shipping requirements or need expedited delivery, please contact our customer service team, and we will do our best to accommodate your needs.

FAQ:

Q1: What is the brand and model number of this CNC Workholding Fixture?

A1: The CNC Workholding Fixture is manufactured by the brand AST and the model number is 96 Series.

Q2: Where is the AST 96 Series CNC Workholding Fixture made?

A2: The AST 96 Series CNC Workholding Fixture is made in China.

Q3: What types of materials can the AST 96 Series CNC Workholding Fixture hold?

A3: The AST 96 Series CNC Workholding Fixture is designed to securely hold a variety of materials including metals, plastics, and composites commonly used in CNC machining.

Q4: Is the AST 96 Series compatible with different CNC machines?

A4: Yes, the AST 96 Series CNC Workholding Fixture is designed to be versatile and compatible with most standard CNC machines.

Q5: What are the main benefits of using the AST 96 Series CNC Workholding Fixture?

A5: The AST 96 Series provides precise and stable workholding, improves machining accuracy, reduces setup time, and enhances overall productivity in CNC operations.
