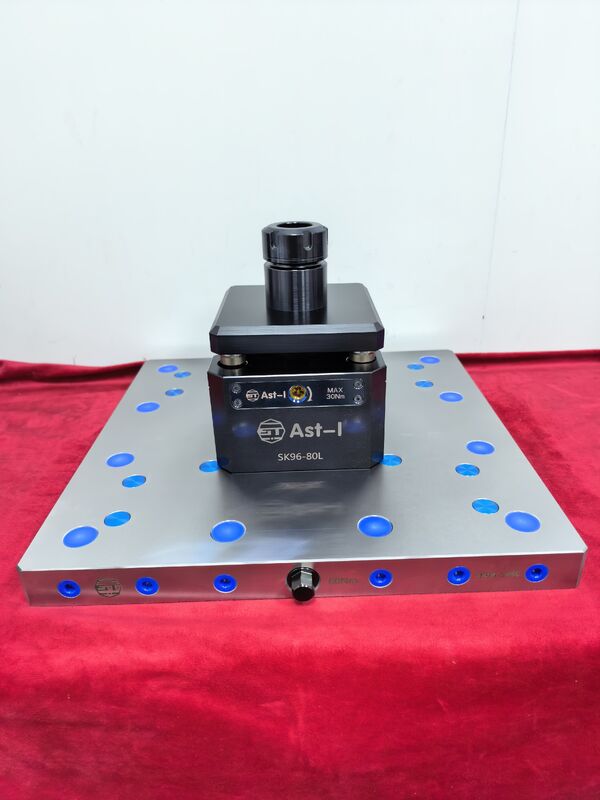

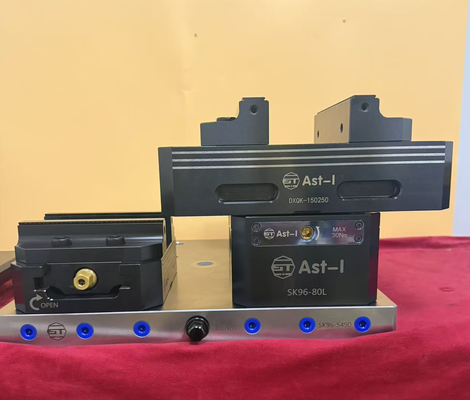

Oem Flexible Exchange Quickly CNC Workholding Fixture For Metalworking

Product Description:

The CNC Workholding Fixture is an essential component designed to enhance precision and efficiency in modern machining processes. Engineered with advanced technology and meticulous craftsmanship, this fixture offers unparalleled repeat accuracy within 0.005mm, ensuring that each workpiece is held securely and consistently throughout the machining cycle. Such high precision is critical for industries requiring tight tolerances and exceptional quality control, making this fixture an indispensable tool for CNC machining centers.

Weighing 12 kilograms, the CNC Workholding Fixture strikes an optimal balance between robustness and portability. Its sturdy construction allows it to withstand substantial forces during machining operations, while its manageable weight facilitates easy installation and repositioning on the machine table. This combination of strength and convenience helps reduce setup times and increases overall productivity on the shop floor.

One of the standout features of this fixture is its impressive torque capacity of 18 KN. This high torque rating ensures that the fixture can firmly clamp even the most demanding workpieces without any risk of slipping or movement. The secure grip provided by the fixture minimizes vibrations and enhances machining accuracy, ultimately leading to better surface finishes and prolonged tool life.

Designed with versatility in mind, the CNC Workholding Fixture boasts multi-axis adjustability. This feature allows operators to fine-tune the positioning of the workpiece along multiple axes, providing greater flexibility for complex machining tasks. Whether you are dealing with irregularly shaped parts or require precise angular adjustments, this fixture can accommodate a wide range of configurations, making it suitable for diverse applications across various industries.

Incorporating a zero point base system, the fixture enables rapid and repeatable positioning of workpieces. The zero point base acts as a reliable reference that simplifies the setup process, drastically reducing machine downtime and improving workflow efficiency. This system allows for quick attachment and detachment of the fixture, facilitating fast changeovers between different jobs and minimizing production delays.

The CNC Workholding Fixture also supports fast exchange tooling, enhancing operational flexibility. The fast exchange tool capability means that tools and fixtures can be swapped swiftly without compromising alignment or accuracy. This feature is particularly beneficial in high-mix, low-volume production environments where frequent tool changes are necessary. It helps maintain consistent precision while optimizing machine utilization and throughput.

Overall, this CNC Workholding Fixture combines precision engineering, robust performance, and user-friendly design to meet the demanding requirements of contemporary CNC machining. Its repeat accuracy within 0.005mm guarantees that every part is machined to exact specifications, while its substantial torque and multi-axis adjustability provide the strength and flexibility needed for complex operations. The integration of a zero point base and fast exchange tool system streamlines workflows, reduces setup times, and enhances productivity.

Whether you are working on aerospace components, automotive parts, medical devices, or general manufacturing, the CNC Workholding Fixture stands out as a reliable and efficient solution to your workholding challenges. Its ability to deliver consistent results, combined with ease of use and adaptability, makes it an invaluable asset for any CNC machining environment aiming for superior quality and operational excellence.

Applications:

The CNC Workholding Fixture from AST, Model 96 Series, is an essential tool designed to enhance precision and efficiency in various machining operations. Manufactured in China and weighing 12 Kg, this fixture offers robust performance with a locking force of 18KN, ensuring secure and stable workpiece positioning during CNC machining processes. Its multi-axis adjustable design allows for versatile clamping solutions, making it highly adaptable to complex machining requirements.

This CNC Workholding Fixture is particularly suitable for applications requiring high accuracy and repeatability, such as aerospace component manufacturing, automotive parts production, and precision engineering industries. The 4axis clamping fixture capability enables operators to securely clamp workpieces from multiple directions, increasing machining flexibility and reducing setup times. This makes it an ideal choice for production environments where efficiency and precision are paramount.

The product features a multi-position base, which allows for quick adjustments and repositioning of the workpiece without the need for extensive fixture changes. This adaptability enhances workflow by enabling multiple machining operations to be performed on a single setup, reducing downtime and improving overall productivity. Additionally, the clamping fixture design supports OEM requirements, offering customizable solutions tailored to specific manufacturing needs.

In practical scenarios, the AST CNC Workholding Fixture is widely used in job shops, manufacturing plants, and prototyping centers where diverse clamping configurations are necessary. Its multi-axis adjustability and strong locking force make it suitable for holding irregularly shaped or complex parts securely. This ensures consistent machining accuracy, minimizing errors and material waste.

Overall, the AST 96 Series CNC Workholding Fixture is a versatile and reliable solution for various CNC machining applications. Its combination of 4axis clamping fixture functionality, multi-position base, and strong clamping force makes it a valuable asset for industries demanding precision, efficiency, and flexibility in their manufacturing processes.

Customization:

AST's 96 Series CNC Workholding Fixture offers exceptional customization services tailored to meet your precise machining needs. Originating from China, this fixture features a robust multi-position base that allows for versatile clamping fixture setups, ensuring maximum efficiency and adaptability.

With a size of 350x350x30mm and a hardness rating of HRC57°, the 96 Series provides durable and reliable performance. Its multi-axis adjustability enables fine-tuning for complex workpieces, while maintaining repeat position accuracy within 0.005mm. This high repeat accuracy guarantees consistent and precise machining results.

Whether you require a fixture for high-precision manufacturing or flexible clamping solutions, AST's 96 Series CNC Workholding Fixture can be customized to fit your specific production requirements, delivering outstanding stability and repeatability with every use.

Support and Services:

Our CNC Workholding Fixture is designed to provide precise and reliable clamping solutions for your machining needs. To ensure optimal performance and longevity of your fixture, we offer comprehensive technical support and services.

Technical Support:

Our experienced support team is available to assist you with installation guidance, troubleshooting, and maintenance tips. We provide detailed manuals and setup instructions to help you integrate the fixture seamlessly into your CNC operations. Should you encounter any issues, our experts will work with you to identify the problem and recommend effective solutions.

Services:

We offer customization services to tailor the workholding fixture to your specific application requirements. Additionally, routine maintenance and calibration services are available to keep your fixture operating at peak efficiency. Training sessions can also be arranged for your staff to ensure proper usage and handling.

By choosing our CNC Workholding Fixture, you gain access to dedicated technical support and services designed to maximize productivity and minimize downtime.

Packing and Shipping:

Our CNC Workholding Fixture is carefully packaged to ensure maximum protection during transit. Each fixture is securely placed in custom foam inserts within a sturdy, double-walled cardboard box to prevent any movement or damage.

Additionally, the packaging is labeled with handling instructions and product details for easy identification. For added safety, we use moisture-resistant wrapping and corrosion inhibitors to protect the fixture from environmental factors.

We offer reliable shipping options with tracking and insurance to guarantee your CNC Workholding Fixture arrives on time and in perfect condition. Our logistics partners specialize in handling industrial equipment, ensuring prompt and secure delivery to your location.

FAQ:

Q1: What brand manufactures the CNC Workholding Fixture 96 Series?

A1: The CNC Workholding Fixture 96 Series is manufactured by AST.

Q2: Where is the AST 96 Series CNC Workholding Fixture made?

A2: The AST 96 Series CNC Workholding Fixture is made in China.

Q3: What is the model number of this CNC Workholding Fixture?

A3: The model number of this CNC Workholding Fixture is 96 Series.

Q4: Is the AST 96 Series CNC Workholding Fixture compatible with various CNC machines?

A4: Yes, the AST 96 Series CNC Workholding Fixture is designed to be compatible with a wide range of CNC machines for versatile workholding solutions.

Q5: What materials can the AST 96 Series CNC Workholding Fixture hold securely?

A5: The AST 96 Series CNC Workholding Fixture is suitable for securely holding various materials including metals, plastics, and composites during CNC machining operations.
